What is chainmaille?

Well friends basicaly it is a type of armour consisting of small metal rings linked together in a pattern to form a mesh. The word chainmail has been in use only since the 18th century; before that it was referred to simply as mail.

Nowadays it is used as jewelry as we have no beter use for it. I specialise in this art form and can produce just about any pattern provided to me. A list of works will follow this post as well as a pricing list. I will from time to time post any new and interesting info but for the meantime go to my facebook group ChainMaille Jewelry.

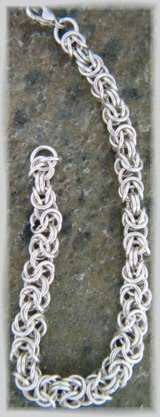

Below are a few examples of works that i can make.

Starting Maille

Winding the Wire

Step 1 The first step in creating links is to create a helical coil of wire (basically a spring). The easiest way to do this is by using a tool called a Mandrel. In its most basic form a mandrel is simply a rod with crank handle on one end, placed between two vertical supports. Holes in the supports allow the rod to slide into position and spin freely. The diameter of the rod will determine the interior diamater of the finished links. More sophisticated mandrels replace the crank handle with a motor essembly.

Step 2 Before you begin to wind the wire you must attach it to the rod. The easiest way to accomplish this is to drill a hole in the rod that is large enough for the wire to pass through. I recommend putting the hole at the end of the rod that is closest to the crank handle. When placing the hole make sure to leave enough space for the hold to be on the inside of the support, as in the illustration.

Step 3 Put the end of your wire through the hole. Depending on the size of your wire spool you will want to mount it on a spindle so that it spins freely. I recommend that the spool be mounted in front of and lower than the mandrel, so that it doesn't get in your way.

Step 4 Slowly start to turn the crank handle to begin winding your coil. Turn the crank clockwise for right-handed links or counter clockwise for left-handed links. Most of you will want right-hand links and all the illustrations on this site reflect right-hand links. You can be sure that you're winding right-hand links if the wire is going onto the rod from the bottom, as in the illustration. As you turn the crank handle with your left hand, hold tension on the wire with your right hand and carefully guide the wire so that the coil winds evenly. You're wire spool should be mounted so that it can spin freely. When you reach the end of the rod cut the wire free at the hole and at the opposite end. Be careful, as you've spun the coil it has built up some tension, when you cut the wire this tension will be released. Slide the rod away from the supports, then slide the finished coil from the rod

Cutting the Links Step 1 Cutting links well is one of the hardest parts of this entire process. There are probably as many theories of cutting links as there are makers of chainmail. I'm going to share the method that I consider the most useful to beginning makers of chainmail. The best links in chainmail have two characteristics that are governed in the cutting process. The most important of these characteristics is to have wire ends that are cut flushly, so that the ends of the wire butt together smoothly in the finished link. The finest links will butt together perfectly. Cuttings links with perfectly straight ends is just about impossible when dealing with a coil. The only kinds of cutters that cut wire flushly are "Bypass Cutters", but they don't fit into the coil. This leaves bolt and cable cutters as the main option for cutting links from the coil. While bolt and cable cutters tend to leave a slightly angled cut edge I still consider them the easiest method for beginning makers. Unless you tear phonebooks in half on a regular basis you will probably find it very tiring and downright painful to handcut links from the coil. To help alleviate this problem I recommend using a medium-sized set of boltcutters mounted in a vice. This allows you to use leverage to do all the hard work of cutting links. The cutters in this illustration are mounted for cutting with the left hand and holding the coil with the right hand. Right handed cutting is probably easier for most people, so set up the cutters in the manner that is the most comfortable for you. It is beneficial to put something under the jaws of the cutters to catch the links as they are cut.

Step 2 To cut links from the coil insert the end of the coil into the mouth of the boltcutters and close the handle. Make sure that the edge of the cutter blade is as tight as possible to the end of the wire, if it is not tight then there can be a gap in your links. (illustration "B" below) Depending on the size of your coil and cutters you may be able to cut more than a single link at a time, it is a good idea to experiment. I've read some instructions for making links that suggest that you should stretch your coils before you cut them. The idea being that you can later avoid steps that involve bending the links open. It has been my experience that all this supposed time saving step does is create links that are highly misshapen. Illustration "A" - Cutting a Link, Side View Illustration "B" - Cutting a Link, Top View

Step 3 You should check you're links for consistency as you cut them. Make sure that they are staying as round as possible and that the gap is as tight as possible.

Using Links Tools Different chainmail makers like different kinds of pliers. Some use needlenose, but I've never liked them. I prefer to use 7" Linesman Pliers, although some folks will find that 6" or 8" are more appropriate for their hand size. You will need two pair of identical pliers to create chainmail properly. This is one of my favorite pairs, made by a company called Jet. Important Technique The main reason that I prefer linesman's pliers is because of the way the wide jaws will completely cover the width of most links. This allows you to apply very even pressure on the links as you manipulate them. Even pressure is vital in keeping links flat. Lineman's pliers also have flat tips, most needlenose pliers have a rough surface over the entire length of the jaw which can damage the finish of links. IMPORTANT! IMPORTANT! IMPORTANT! - The entire process of making chainmail in this manner is very stressful to your hands. Please do not attempt any of the following techniques if you concerned in any way about repetitive stress injuries. This site takes no responsibility for injuries that may be incurred by following these instructions! Bending Jump Links Open Step 1 Before you begin working on any patterns it is a good idea to open a quantity of links. Each pattern on this site will list the proper ratio of closed to opened links for that pattern. Place the jaws of your two pliers on the link to be opened, with each plier covering as close to 50% of the link as possible. Make sure that the break in the link is facing up. Twist the right plier away from your body and at the same time twist the left plier towards your body. It is vital to apply even pressure with both pairs of pliers when using these techniques. Step 2 Open the link only as far as necessary to easily pass through other links. It's much easier to close links that aren't over-opened. Bending Jump Links Closed Step 1 Before you begin working on any patterns it is a good idea to close a quantity of links. Each pattern on this site will list appropriate portions of links to open and close for that pattern. Place the jaws of your two pliers on the jump link to be closed, with each plier covering as close to 50% of the link as possible. Make sure that the break in the link is facing up. Twist the right plier towards your body and at the same time twist the left plier away from your body. Again it is vital to apply even pressure with both pairs of pliers. Step 2 The link should be absolutely as flat as possible when closed. Step 3 If you are making your links out of a material that is specifically springy, then it might be necessary to slightly over-twist the link, so that when you release the pressure it will spring back to perfect alignment. Bending Open Links Closed Step 1 Closing open links is more difficult than the previous steps, as it is always done when adding a link to other links. Place the jaws of your two pliers on the jump link to be closed, with each plier covering as close to 50% of the link as possible. Make sure that the break in the link is facing up. Twist the right plier towards your body and at the same time twist the left plier away from your body. In some cases it will be impossible to get an even grip on both sides of a link. It's important to get the best grip possible and twist the link with perfectly smooth and even pressure. Don't worry if it takes awhile to develop a good technique for closing links, it probably took me 10 years to start twisting my links consistently and I still ruin 1% of the open links that I close. Be careful when your hands are tired and you don't have a good, even grip on a link that you're trying to close. If your pliers slip it can be very painful, I've bruised myself several times trying complicated bends when I was too tired, I've even chipped a tooth from the force of pliers that slipped. Step 2 Again, the link should be absolutely as flat as possible when closed. Improperly closed links will be "Saddle-shaped". Misshapen Links Step 1 Despite your best efforts with closing links properly you are bound to have a few that just don't come out right. I check every link I close to make sure that it is as round as possible. When I find a misshapen link I try and fix it by applying pressure with the tip of the pliers, as in the diagram below. This works to straighten the link 7 out of every 8 attempts. It will take time to learn the correct method, so don't get discouraged if you ruin quite a few links in mastering this technique. Step 2 Try and keep your links as close to perfect circles as possible.
